Male / Female

Male / Female

Connector-MaleFemale_01

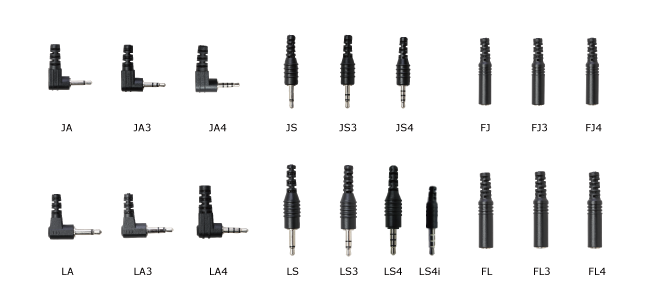

2.5mm / 3.5mm Connector

JA 2.5mm 2 pole angled connector
JA3 2.5mm 3 pole angled connector
JA4 2.5mm 4 pole angled connector
JS 2.5mm 2 pole straight connector
JS3 2.5mm 3 pole straight connector
JS4 2.5mm 4 pole straight connector
FJ 2.5mm 2 pole female connector socket
FJ3 2.5mm 3 pole female connector socket
FJ4 2.5mm 4 pole female connector socket
LA 3.5mm 2 pole angled connector
LA3 3.5mm 3 pole angled connector
LA4 3.5mm 4 pole angled connector
LS 3.5mm 2 pole straight connector
LS3 3.5mm 3 pole straight connector
LS4 3.5mm 4 pole straight connector
LS4i 3.5mm 4 pole straight connector (slim version for phone)
FL 3.5mm 2 pole female connector socket
FL3 3.5mm 3 pole female connector socket
FL4 3.5mm 4 pole female connector socket

Male / Female quick disconnect connectors

Q 5 pin quick release connector (TA5 connector)
FQ 5 pin quick release female connector socket
MJ 2 pin female jack (can be fitted with MP connector)
MP 2 pin male jack (can be fitted with MJ connector)
HRS6P HRS connector HR10A-7P-6P original
HRS6S HRS connector HR10A-7J-6S original
HRS12P HRS connector HR10A-10P-12P original
HRS12S HRS connector HR10A-10J-12S original
VP TP / VP 4 pole nexus connector
FVP TP / VP 5 pole female connector
